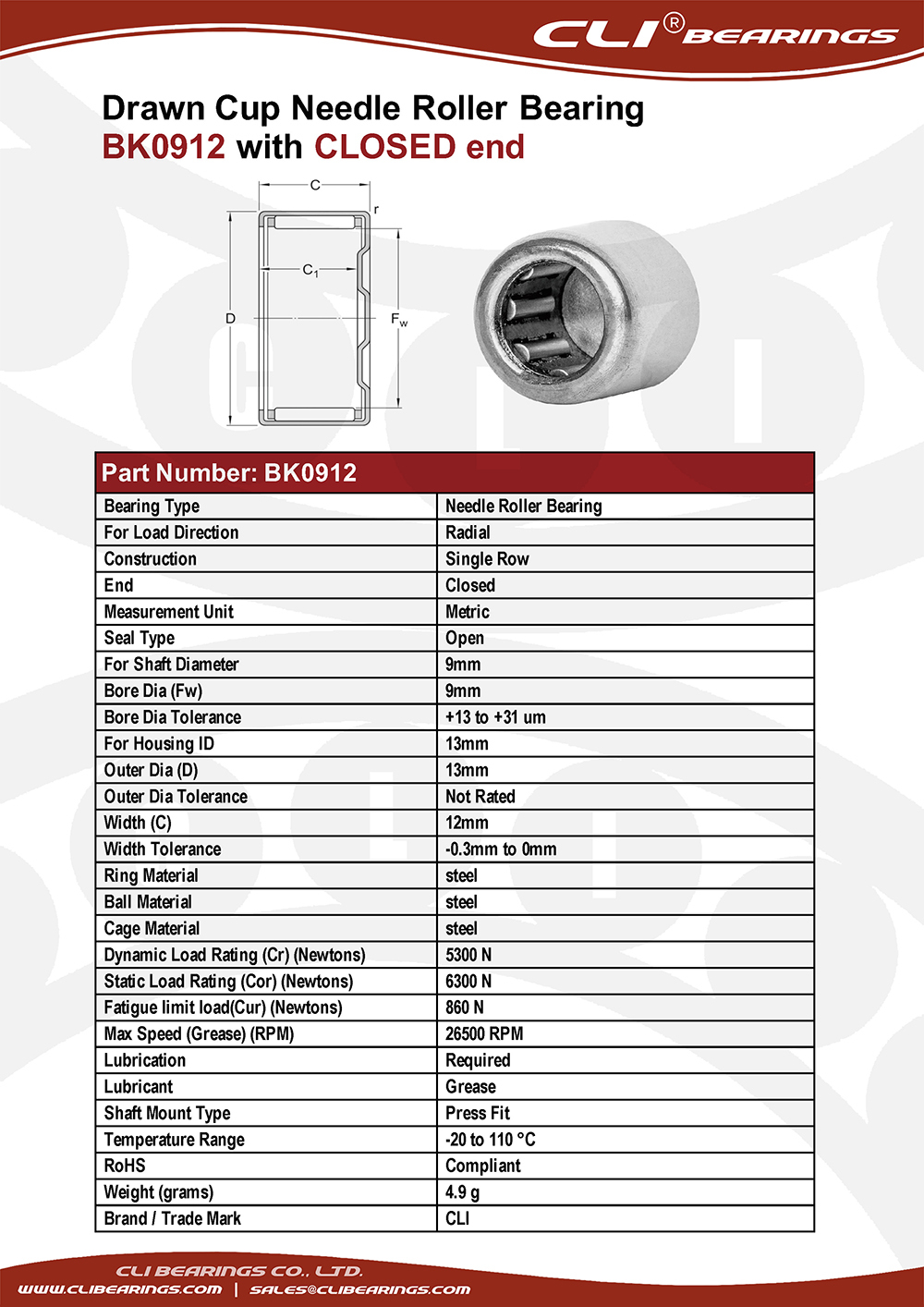

Part Number: BK0912 (9x13x12 mm) |
Bearing Type |
Needle Roller Bearing |
For Load Direction |
Radial |
Construction |
Single Row |
End |
Closed |
Measurement Unit |
Metric |
Seal Type |
Open |
For Shaft Diameter |
9mm |
Bore Dia (Fw) |
9mm |
Bore Dia Tolerance |
+13 to +31 um |
For Housing ID |
13mm |
Outer Dia (D) |
13mm |
Outer Dia Tolerance |
Not Rated |
Width (C) |
12mm |
Width Tolerance |
-0.3mm to 0mm |
Ring Material |
steel |
Ball Material |
steel |
Cage Material |
steel |
Dynamic Load Rating (Cr) (Newtons) |
5300 N |
Static Load Rating (Cor) (Newtons) |
6300 N |
Fatigue limit load(Cur) (Newtons) |
860 N |
Max Speed (Grease) (RPM) |
26500 RPM |
Lubrication |
Required |
Lubricant |
Grease |
Shaft Mount Type |
Press Fit |
Temperature Range |
-20 to 110 °C |
RoHS |
Compliant |
Weight (grams) |
4.9 g |
Brand / Trade Mark |
CLI |
