| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Shielded |

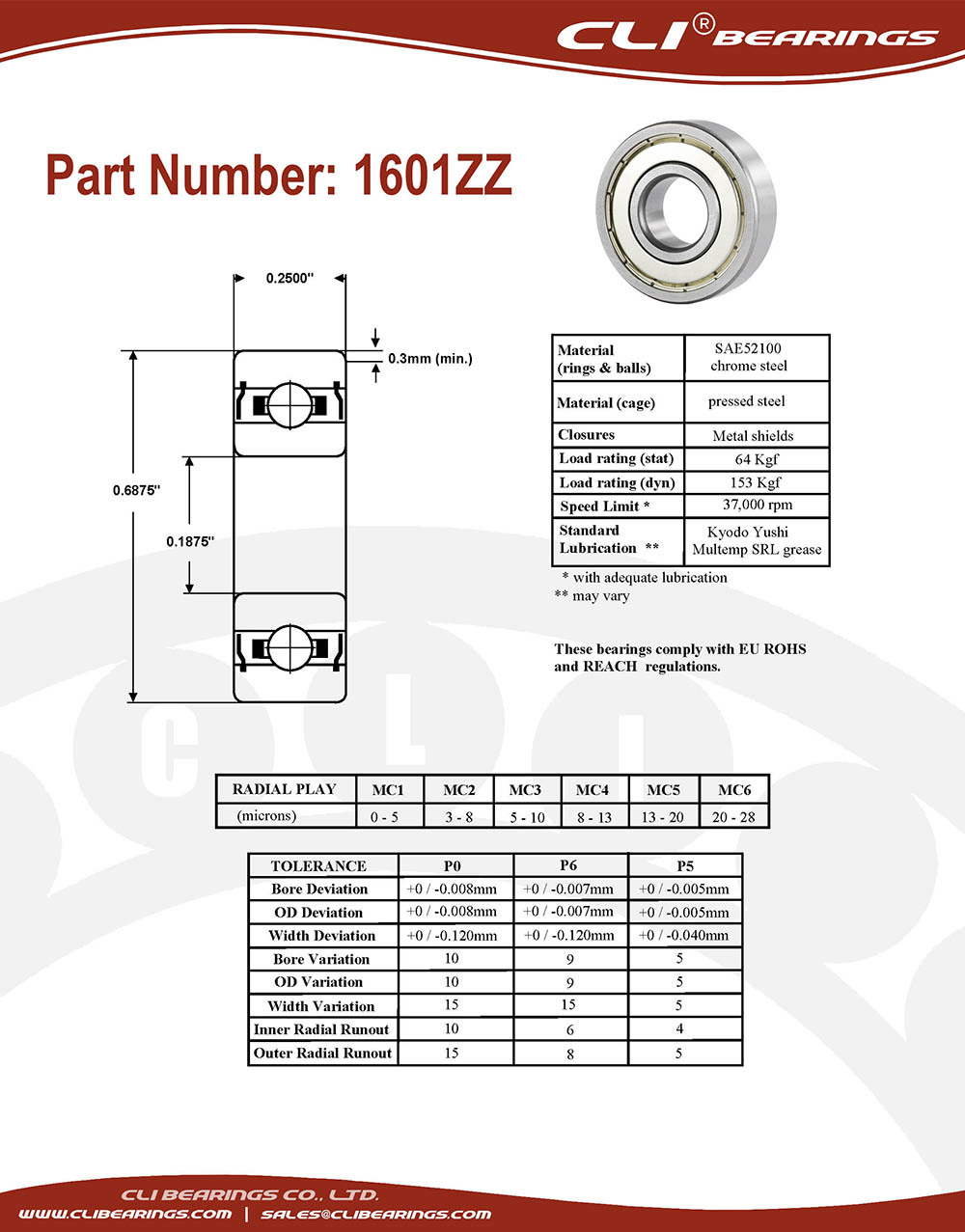

| Part Number | 1601 ZZ |
| For Shaft Diameter | 0.1875" |
| Bore Dia (d) | 0.1875" | 4.763 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| For Housing ID | 0.6875" |
| Outer Dia (D) | 0.6875" | 17.463 mm |
| Outer Dia Tolerance | -0.008mm to 0 |
| Width (B) | 0.2500" | 6.35 mm |
| Width Tolerance | -0.120mm to 0 |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Load Rating (Cr) (lbs) | 600 |
| Static Load Rating (Cor) (lbs) | 220 |
| Max Speed (Grease) (X1000 RPM) | 5 |
| Max Speed (Oil) (X1000 RPM) | 6 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.002mm to 0.013mm |
| RoHS | Compliant |
| Ball Qty | |
| Ball Dia | |
| Weight (grams) | 4 |
